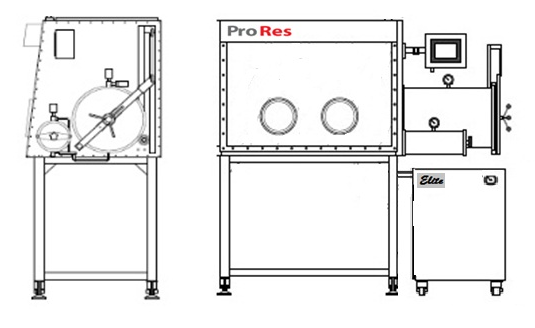

• Dimension : 1240 mm W x 790 mm D x 920 mm H (2 ports, one side)
  • Internal Finish: 304 stainless steel Brushed Finish
  • External surfaces : 304 stainless steel Brushed Finish (Powder coating Optional)
  • Wall Thickness : 2.5 mm (3 mm Optional)
  • Removable front window :Laminated safety Glass 10mm (Scratch proof and chemical Resistance polycarbonate 9.5mm Optional )
  • Glove Ports : Delrin (POM) Natural white 220 mm
  • Gloves : Butyl 0.4mm thickness
  • Feedthroughs : DN ISO KF40 4 No's
  • Dust Filter : HEPA filter class H14 1xinlet /1 outlet
  • Shelves : 3 height adjustable 304 stainless steel brushed finish
  • Box Stand : Height adjustable with wheels and locking mechanism
Large Antechamber Stainless Steel
  • Cylindrical type 400 mm Ø 600 mm Length
  • Inside and outside surface brushed finish
  • Stainless steel sliding tray
  • Aluminum anodized door 10mm thickness
  • Analogue vacuum gauge
  • Manual evacuating and refill valve (Automatic refill and evacuating control optional)
Small Antechamber
  • Cylindrical type 154 mm Ø 410 mm Length
  • Inside and outside surface brushed finish
  • Manual evacuating and refill valve
Elite single coloum Gas purication system
  • 7 inch Siemens touch screen HMI, Siemens PLC controller
  • Auto-regeneration
  • <1ppm O2 and <1ppm H2o purity
  • O2 capacity – 41L purification Coolum
  • Variable speed circulation blower 110m3/h
  • Automatic pressure control +/- 15mbar
  • Manual pressure control Siemens ip65 water proof foot switch
  • Automatic purging
  • O2 and H2o High alarm
  • 20 m3/h rotary vane pump with oil mist filter
  • Integrated solid probe oxygen analyzer 0-1000ppm (electrochemical sensor optional)
  • Integrated moisture analyzer 0-1000ppm
